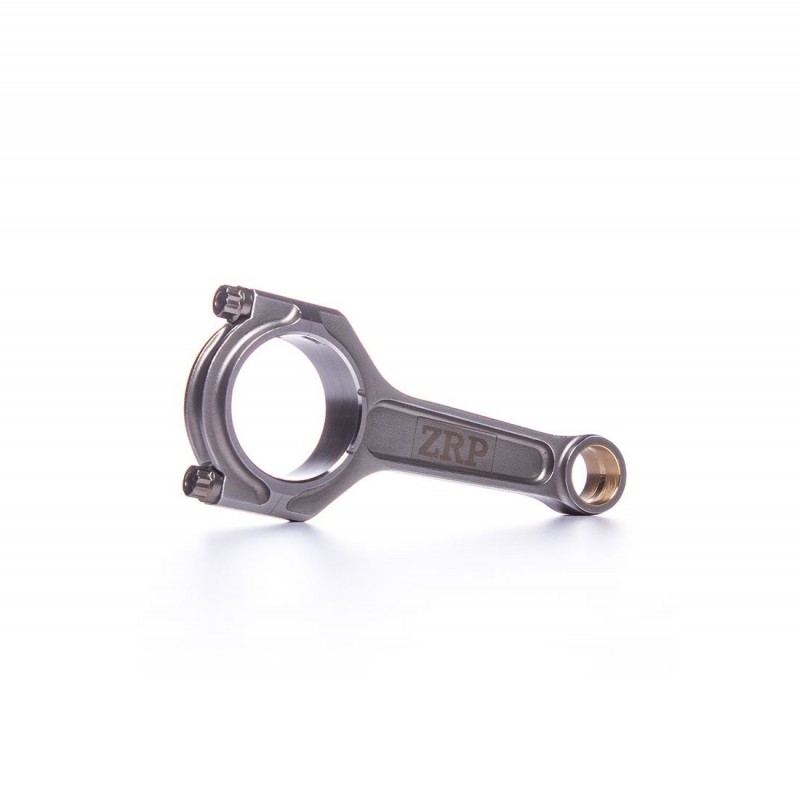

Volvo 1.9L 16v B4204T / B4194 (S40 / V40) Connecting Rods with L19 bolts
- Stock: In Stock
- Brand: ZRP Racing
- SKU: R-VOL-005-I-4-L19
Цена:
793.60 €
Product Details
- Brand
- Volvo
- Shape
- I-Beam
- Material
- High Tensile Steel 4340
- Length
- 139.50
- Bolt Size
- 3/8"
- Application
- 1.9L 16v B4204T / B4194 (S40 / V40)
- Big End
- 53.00
- B.E Width
- 25.65
- Set Of
- 4
- Pin Size
- 23.00
- Series
- Standard
- Engine
- 2.0L
- Note
- ARP2000 cap fasteners - Upgrade option to L19 material
Description
Volvo B4204 / B4194 HD Series Connecting Rods
ADDITIONAL FEATURES
- Connecting rods equipped with ARP L19 cap fasteners [rated to 260,000psi].
- AMPCO 18 bushings for excellent resistance to wear and fatigue.
- Bushings include radial groove for oil reservoir.
- Dowel sleeves for perfect fit and accurate re-assembling.
- Double ribbed cap for added strength and durability.
- Dual Grooves in thrust face for weight reduction.
- I-Beam Shape for extra rigidity.
For a detailed illustration of the features click here
TECHNICAL FEATURES
- 2 piece forgings from high tensile steel 4340
- Shot Peening for improved fatigue life.
- Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
- Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
- CNC machining for superior tolerances as tight as 0.0002''
- Center to center is a maintained to .001? tolerance
- Finite Element Analysis FEA Computer generated stress analysis of con rods.
- Bend and twist is tightly controlled.
- Optimal balancing for weight matched sets ± 1gram.
