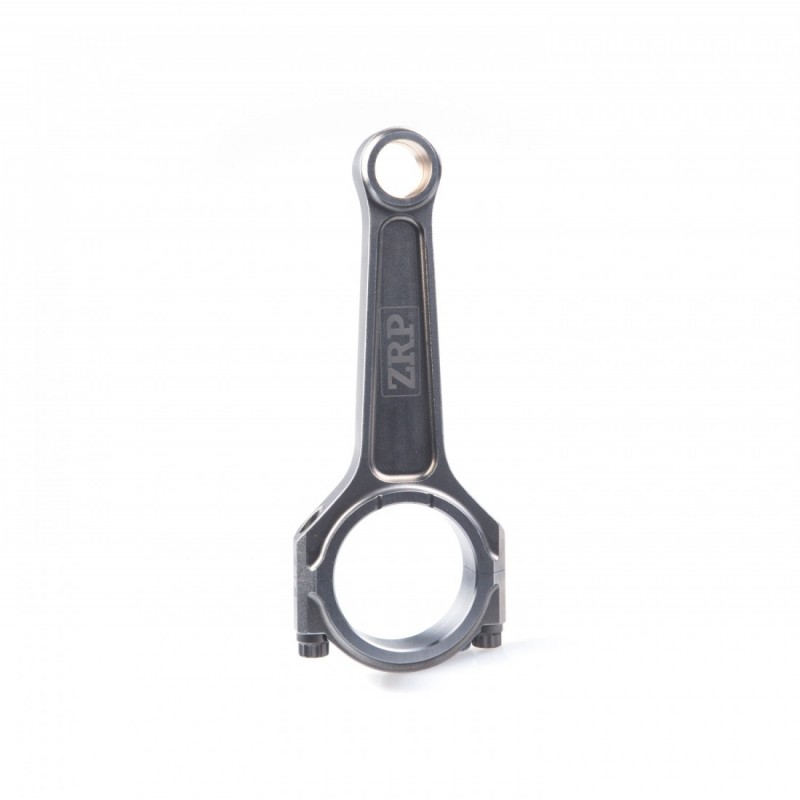

Nissan GTR R35 VR38DETT HD Series Connecting Rods with L19 bolts
- Stock: In Stock
- Brand: ZRP Racing
- SKU: R-NIS-006-I-L19
Цена:
1,454.52 €
Product Details
- Brand
- Nissan
- Shape
- I-Beam
- Material
- High Tensile Steel 4340
- Length
- 165.00
- Bolt Size
- 3/8"
- Application
- VR38DETT (GTR)
- Big End
- 59.00
- B.E Width
- 22.80
- Set Of
- 6
- Pin Size
- 23.00
- Series
- Heavy Duty
- Engine
- 3.8L VR38
- Note
- Non-Tapered Pin End
Description
Nissan GTR R35 VR38DETT HD Series Connecting Rods
ADDITIONAL FEATURES
- Connecting rods equipped with 3/8" ARP L19 bolts [rated to 260,000psi], 15% stronger than ARP2000.
- AMPCO 18 bushings for excellent resistance to wear and fatigue.
- Bushings include radial groove for oil reservoir.
- Dowel sleeves for perfect fit and accurate re-assembling.
- Double ribbed cap for added strength and durability.
- Dual Grooves in thrust face for weight reduction.
- I-Beam Shape for extra rigidity.
- Heavy Duty series (H.D) rods for High HP/Boost applications
For a detailed illustration of the features click here
TECHNICAL FEATURES
- 2 piece forgings from high tensile steel 4340
- Shot Peening for improved fatigue life.
- Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
- Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
- CNC machining for superior tolerances as tight as 0.0002''
- Center to center is a maintained to .001? tolerance
- Finite Element Analysis FEA Computer generated stress analysis of con rods.
- Bend and twist is tightly controlled.
- Optimal balancing for weight matched sets ± 1gram.
