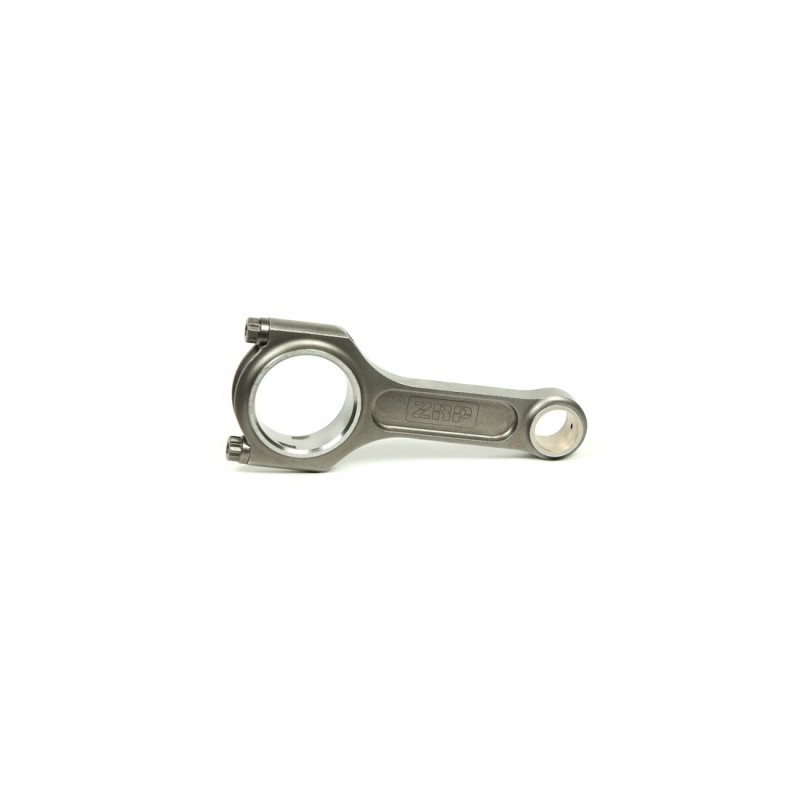

Fiat Uno . Punto / 1.6L Tempra Connecting Rods with L19 bolts
- Stock: In Stock
- Brand: ZRP Racing
- SKU: R-FIA-001-I-L19
Цена:
772.52 €
Product Details
- Brand
- Fiat
- Shape
- I-Beam
- Material
- High Tensile Steel 4340
- Length
- 128.52
- Bolt Size
- 3/8"
- Application
- 1.4L & 1.6L Punto / Uno / Tempra
- Big End
- 48.63
- B.E Width
- 25.40
- Set Of
- 4
- Pin Size
- 22.00
- Series
- Standard
- Engine
- 1.4L 176A, 1.4L 146A
- Note
- AMPCO 18 bushings
Description
Fiat 1.4L & 1.6L Punto / Uno / Tempra / Ritmo
- Between Centers - 128.50mm
- Big end - 48.63mm
- Small end - 22.00mm
- B.E Width - 25.40mm
- Bolt size - 3/8" ARP L19
- Qty in Kit - 4pcs
Additional machining processes:
- Aluminum - Silicon/ Bronze bushing with radial groove
- Dowel sleeves for perfect fit and accurate re-assembling
- Lipped Cap Relief for improved big-end integrity at extreme application
- Grooves in Thrust Face for weight reduction
Technical Features of ZRP Connecting Rods:
- Shot Peening for improved fatigue life
- Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard
- Multi Stage Heat Treat for maximum strength, dimensional stability, and fatigue life.
- CNC machining for superior tolerances as tight as 0.0003"
- Optimal balancing for weight matched sets (+/- 1g)
- Center to center is held to 001" tolerance
- Finite Element Analysis FEA Computer generated stress analysis of con rods
- ARP L19 Rod Bolts rated to 260,000psi
- I-Beam Design - High tensile steel 4340
- Combination tested to over 700HP+
Supplied boxed into sets with ARP moly and full fitting instructions
