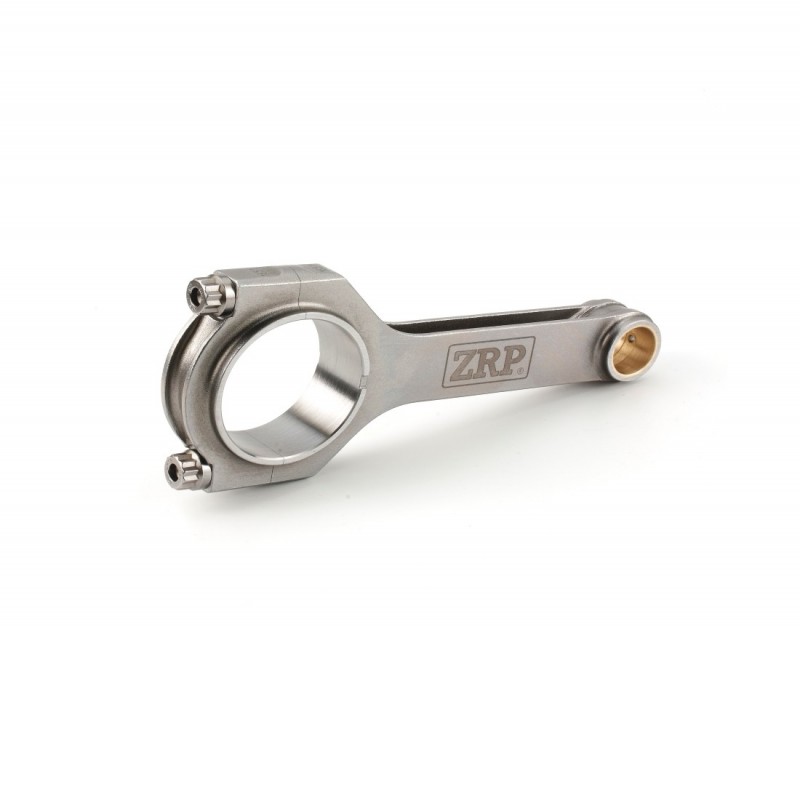

Daihatsu 1.0L Charade Connecting Rods with L19 bolts
- Stock: In Stock
- Brand: ZRP Racing
- SKU: R-DAI-001H-L19
Цена:
610.00 €
Product Details
- Brand
- Daihatsu
- Shape
- H-Beam
- Material
- High Tensile Steel 4340
- Length
- 125.04
- Small End
- 19mm
- Bolt Size
- 5/16"
- Application
- 993cc Turbo, Charade, GT
- Big End
- 46.08
- B.E Width
- 24.80
- Set Of
- 3
- Pin Size
- 19
- Series
- Standard
- Engine
- 1.0L GTTI
- Note
- -
Description
Daihatshu Charade Gtti
ADDITIONAL FEATURES
- Ribbed pin end minimize P.E distortion under heavy inertial loads and saving extra weight.
- Aluminum – silicon/ bronze bushing with radial groove.
- Dowel sleeves for perfect fit and accurate re-assembling.
- Lipped cap relief for improved big-end integrity at extreme application.
- Double ribbed cap for added strength and durability.
- Grooves in thrust face for weight reduction.
- 2 piece forgings from high tensile steel 4340.
- ZRP laser mark logo.
For a detailed illustration of the features click here
TECHNICAL FEATURES
- Shot Peening for improved fatigue life.
- Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard.
- Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
- CNC machining for superior tolerances as tight as 0.0002?.
- Center to center is held to 001? tolerance
- Finite Element Analysis FEA Computer generated stress analysis of con rods.
- Bend and twist is tightly controlled.
- Optimal balancing for weight matched sets ± 1gram.
