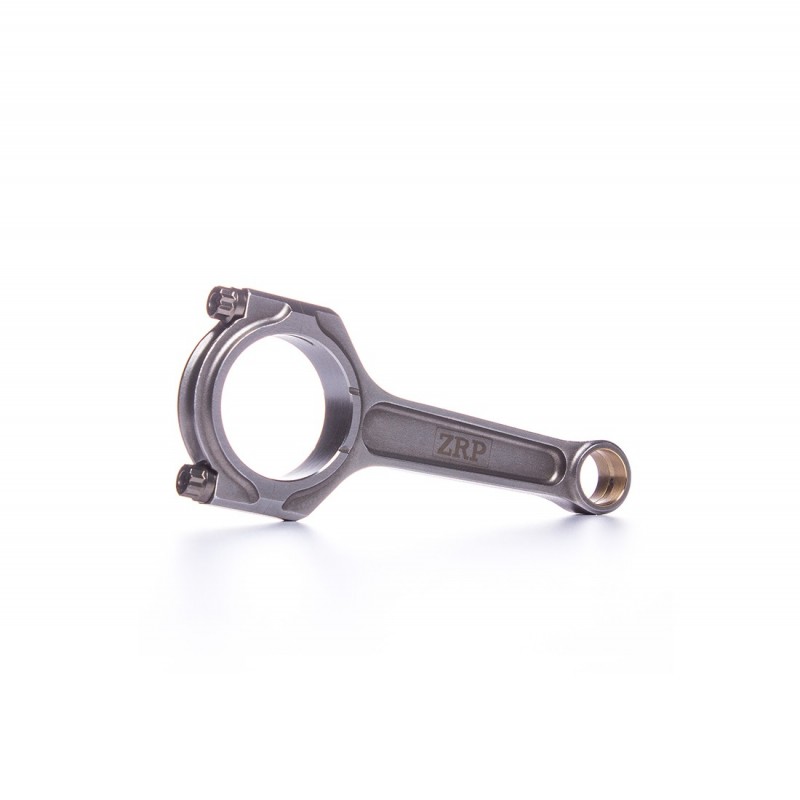

BMW 3.0L N54 I-Beam Connecting Rods with L19 bolts

Product Details

Brand

BMW

Shape

I-Beam

Material

High Tensile Steel 4340

Length

145.00

Small End

22.00mm

Bolt Size

3/8"

Application

3.0L N54

Big End

53635

B.E Width

20.88

Set Of

6

Pin Size

22.00

Series

-

Engine

3.0L N54B30

Note

Non-Tapered Pin End / Straight PE

Description

The I-Beam Connecting rods for BMW 3.0L N54 are built from the finest raw materials 4340 high tensile steel with a specially optimized shape for high performance and extreme durability. These feature “straight cut” pin end for increased durability, so they can only be used in conjunction with aftermarket pistons. The bushings are made from AMPCO 18 material, for excellent resistance to wear and fatigue and have radial groove acting as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances. Bend and twist is tightly controlled.Each rod includes ARP L19 cap fasteners that are rated at 260,000psi and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

• “Straight Cut” Pin End - Suitable for aftermarket pistons
• Dowel sleeves for perfect fit and accurate re-assembling
• Lipped Cap Relief for improved big-end integrity at extreme application
• Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

• I-Beam Shape for extra rigidity
• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
• Double ribbed caps for added support
• Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
• CNC machining for superior tolerances, precise as much as 0.0002"
• Center to center is maintained under .001" tolerance
• Finite Element Analysis (FEA) Computer generated stress analysis of con rods
• Optimal balancing for weight matched sets of ± 1gram

Horsepower range for these rods is 175HP. per cylinder with ARP 2000 fasteners and 200HP with ARP L19 fasteners
